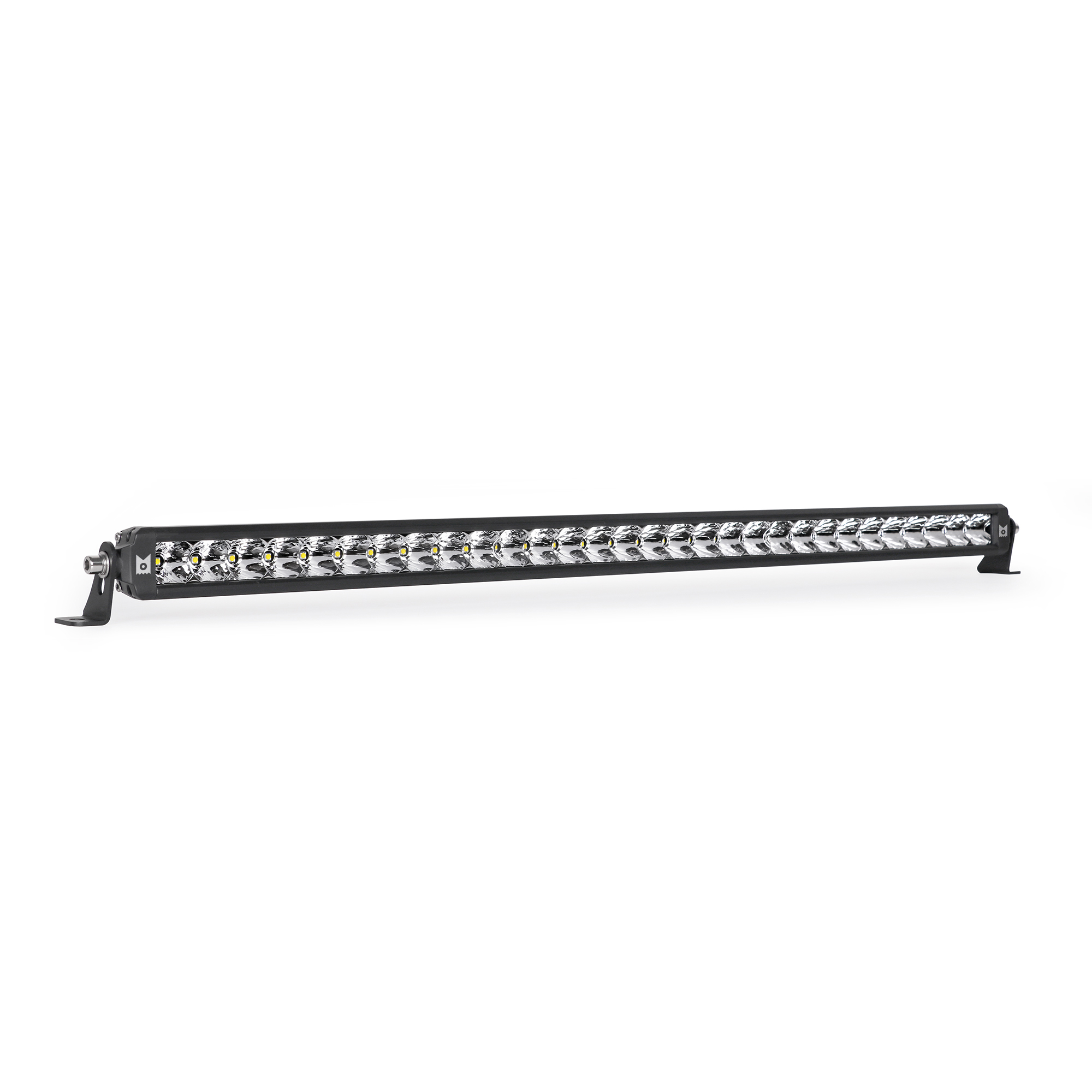

Unleash Extreme Lighting Power for Off-Road Adventures
The ARC Xtreme Series 30" Single Row Rally LED Light Bar is designed for those who demand the absolute best in lighting performance, reliability, and style. This high-performance LED light bar features a combination of spot and flood beams, providing the perfect blend of long-range visibility and wide-area coverage to tackle any off-road trail. Whether you're navigating rugged landscapes, remote roads, or working in low-light environments, the Xtreme Series delivers unmatched power and versatility.
Crafted with a slim, low-profile design, this light bar integrates seamlessly with your vehicle, offering a modern look without compromising durability. Built to endure the harshest elements, the screwless front frame and premium materials ensure that this light bar is ready to perform, no matter the conditions. With a powerful light output of 13,100 lumens and advanced Osram LEDs, the ARC Xtreme Series provides the illumination you need to take your adventures to the next level.
Key Features

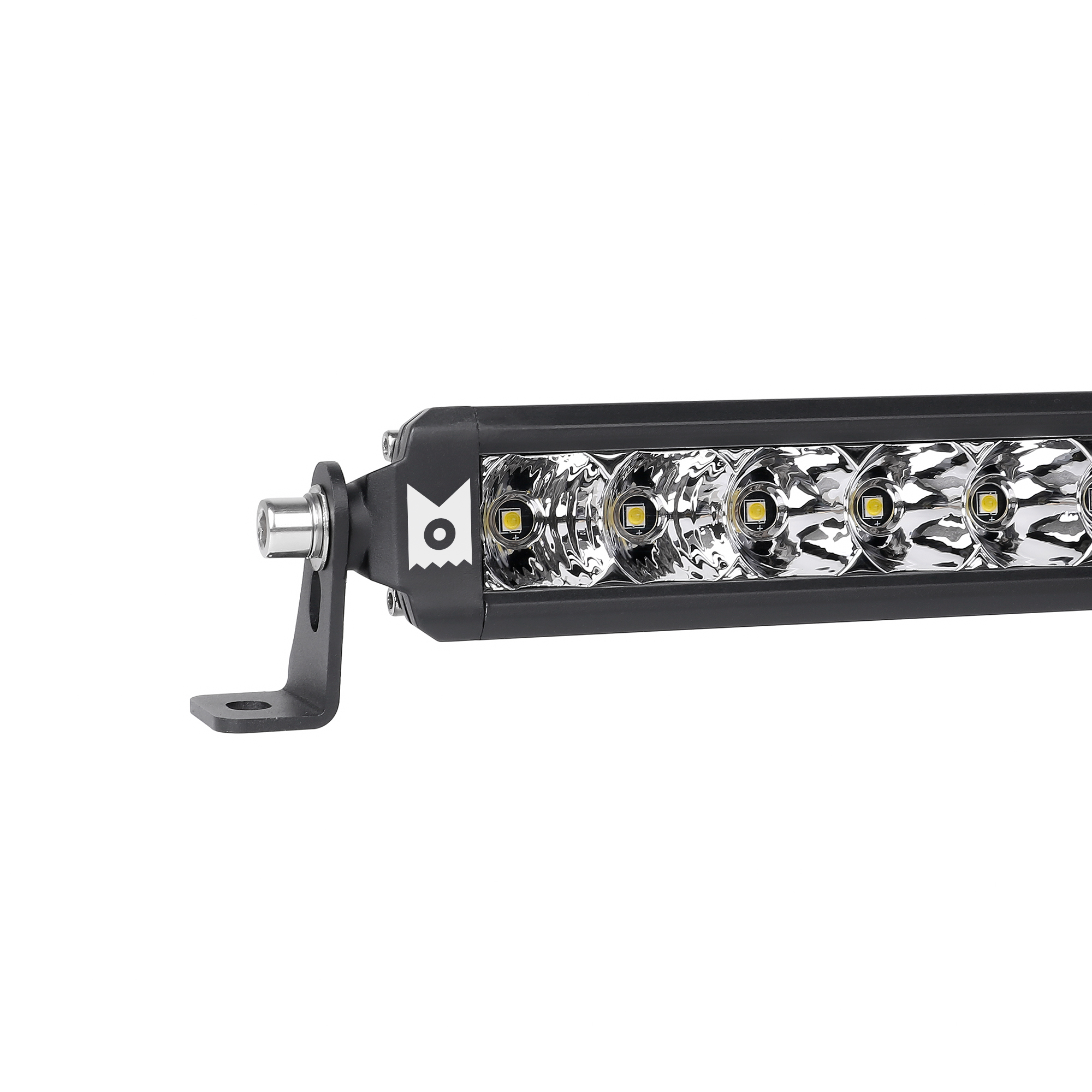

- Optimized Design: Sleek, low-profile chassis with a screwless front frame, providing a modern aesthetic and superior durability.
- Extreme Performance: Delivers an impressive 13,100 lumens with a spot/flood combo beam pattern for both long-distance and wide-area illumination.
- Built to Last: Constructed from high-quality materials, including an IP67-rated housing for resistance against water, dust, and extreme weather.

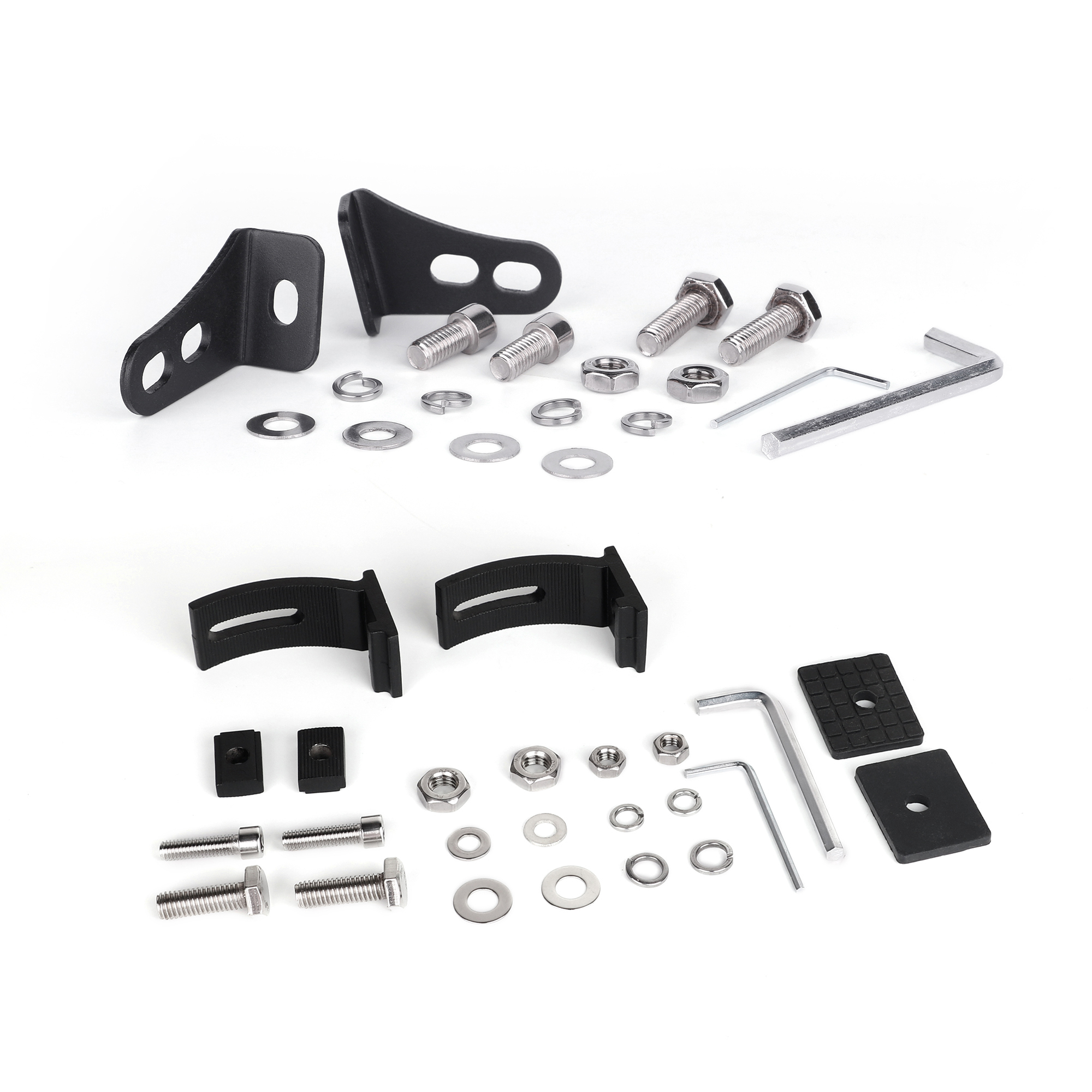

- Versatile Mounting: Comes with both side and bottom mounting brackets for easy installation, offering flexibility in how you mount it to your vehicle.
Additional Features
The ARC Xtreme Series LED Light Bar includes side and bottom mounting brackets, allowing you to choose the installation method that best fits your vehicle and needs. This flexibility ensures that whether you want to install the light bar on the roof, bumper, or grille, you'll have the mounting options needed for a seamless setup. The light bar's IP67 rating means it's designed to withstand dust, water immersion, and rough weather, making it the perfect companion for any off-road adventure.

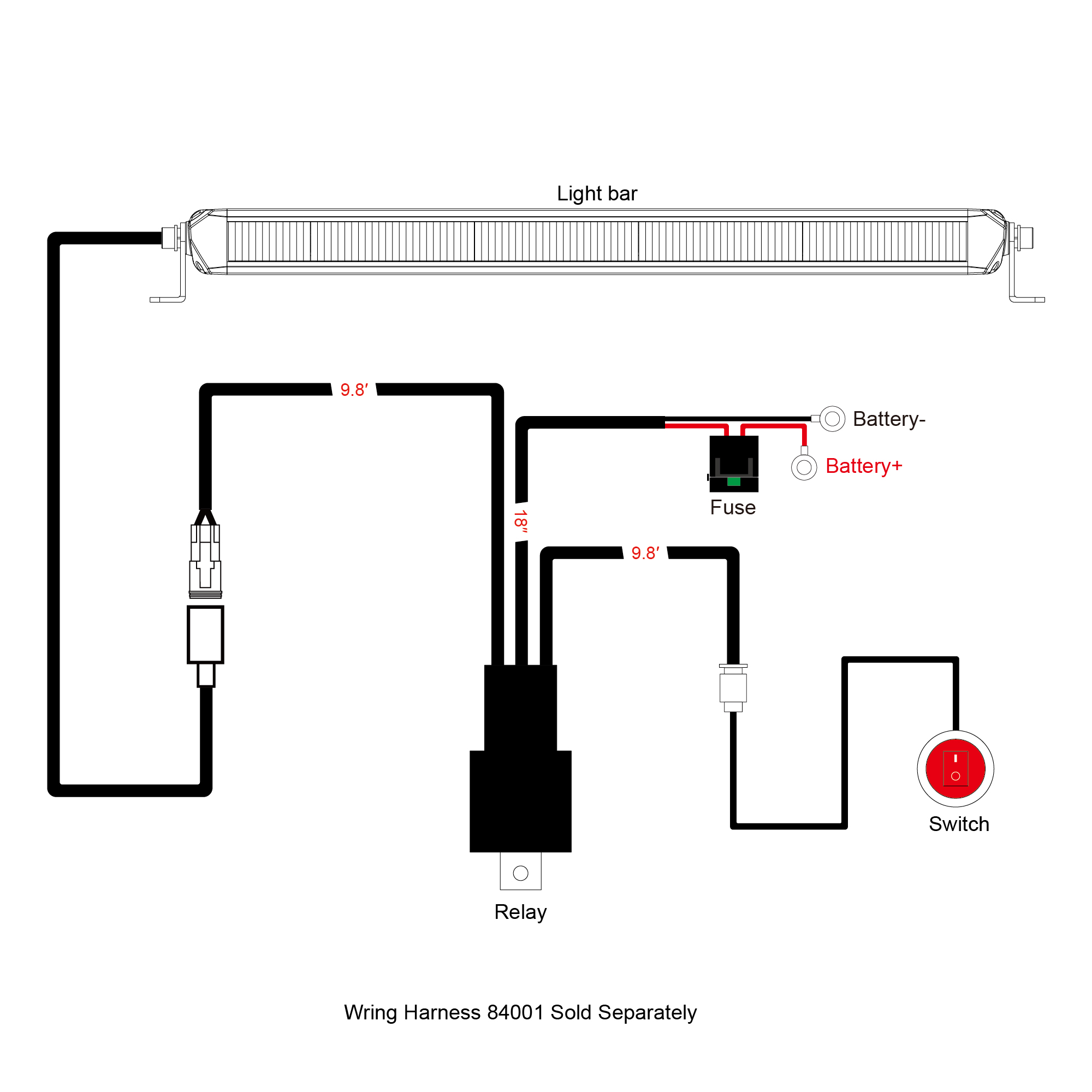

Please note that the wiring harness is sold separately, so you'll need to purchase a compatible harness to complete the installation. We recommend our wiring harness SKU# 84002 for an easy and reliable connection.
Technical Specifications
- Light Output: 13,100 Lumens
- LED Manufacturer: Osram (Oslon)
- Power: 180W @ 13.6V DC
- Current: 13.2A @ 13.6V DC
- Voltage: 9 - 36V DC
- IP Rating: IP67 (Dustproof & Waterproof)

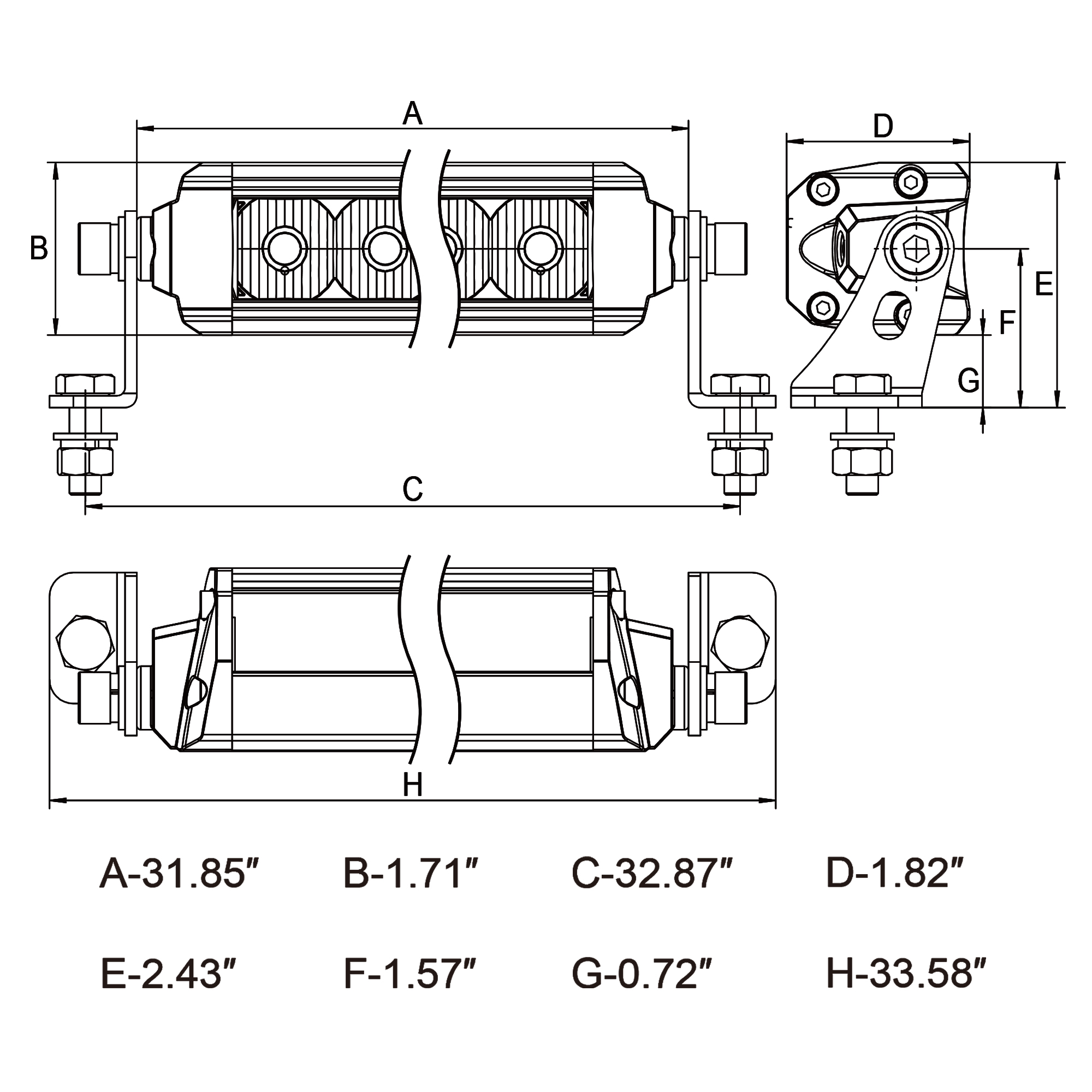

- Dimensions: 1.7″ x 32.0″ x 1.8″
- Beam Pattern: Spot/Flood Combo
- Warranty: 3 Years
Spot/Flood Combo Beam Pattern
The Spot/Flood Combo Beam Pattern is an ideal hybrid lighting solution that combines the focused long-distance capabilities of a spot beam with the wide-area illumination of a flood beam. Here's how it works:
- Spot Beam Component: The spot beam provides a concentrated, narrow light pattern that projects far into the distance. This is perfect for identifying obstacles, terrain changes, or other vehicles ahead—especially at high speeds or in environments where visibility far down the trail is crucial.
- Flood Beam Component: The flood beam offers a broader, diffused spread of light, illuminating the area immediately in front and to the sides of the vehicle. This enhances peripheral visibility, making it ideal for seeing trail edges, road shoulders, or work areas.
This combo ensures you get both long-range visibility and comprehensive area coverage, reducing the need for multiple lighting systems. It’s perfect for off-road enthusiasts, work vehicles, or anyone who requires superior illumination in varied conditions.
Ideal Use Cases
- Off-Road Driving: Perfect for navigating challenging off-road trails, providing both long-range illumination to identify obstacles early and wide-area lighting to illuminate the surrounding terrain.
- Rural & Remote Roads: Ideal for driving in unlit areas where it's important to see far down the road while also being aware of any obstacles or wildlife on the sides.
- Construction Sites: Offers both focused lighting for tasks and broad illumination for work areas, enhancing safety and efficiency on job sites.
- Search & Rescue Operations: Provides comprehensive visibility, helping rescuers see far ahead and across a wide area, increasing the likelihood of quickly locating those in need.
Terms
- IP67 Rating: Indicates that the light bar is both dustproof and waterproof, capable of withstanding harsh conditions and immersion in water up to 1 meter for 30 minutes.
- Spot Beam: A focused light pattern designed for long-distance visibility. Ideal for identifying obstacles or changes in terrain far ahead.
- Flood Beam: A wide, diffused light pattern that covers a broad area, offering excellent illumination for the immediate surroundings.
- Combo Beam: A combination of both spot and flood beams, providing a versatile lighting solution for both long-distance and wide-area illumination.
The ARC Xtreme Series 30" Single Row Rally LED Light Bar is the ultimate lighting solution for those who need both long-range and wide-area illumination. With its optimized design, extreme performance, and rugged construction, this light bar is perfect for off-road enthusiasts, work vehicles, and anyone who wants superior lighting in varied environments. Trust in ARC's quality and craftsmanship to illuminate your path and take on the toughest challenges with confidence. Whether you're blazing trails or working in low-light conditions, the ARC Xtreme Series has you covered.
