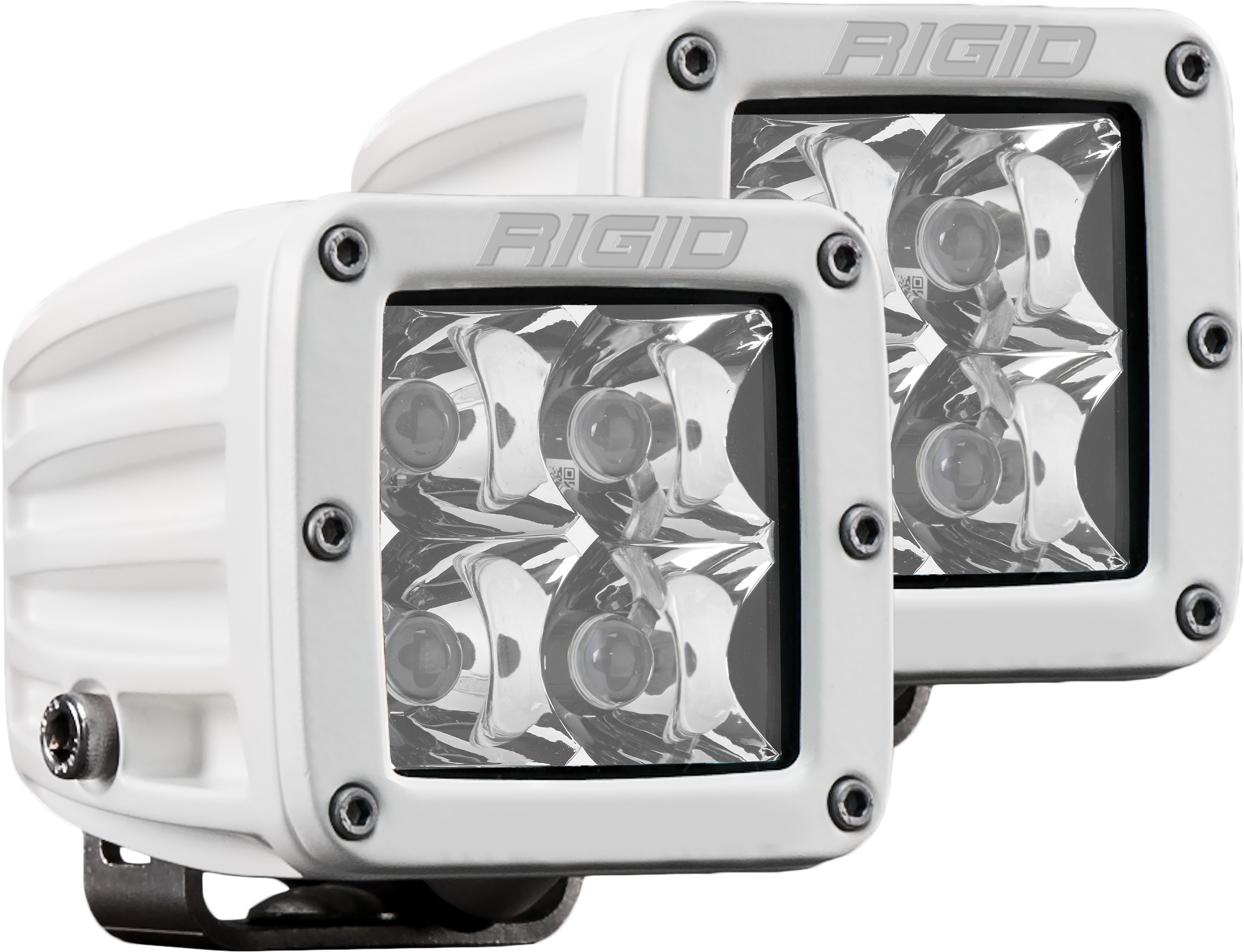

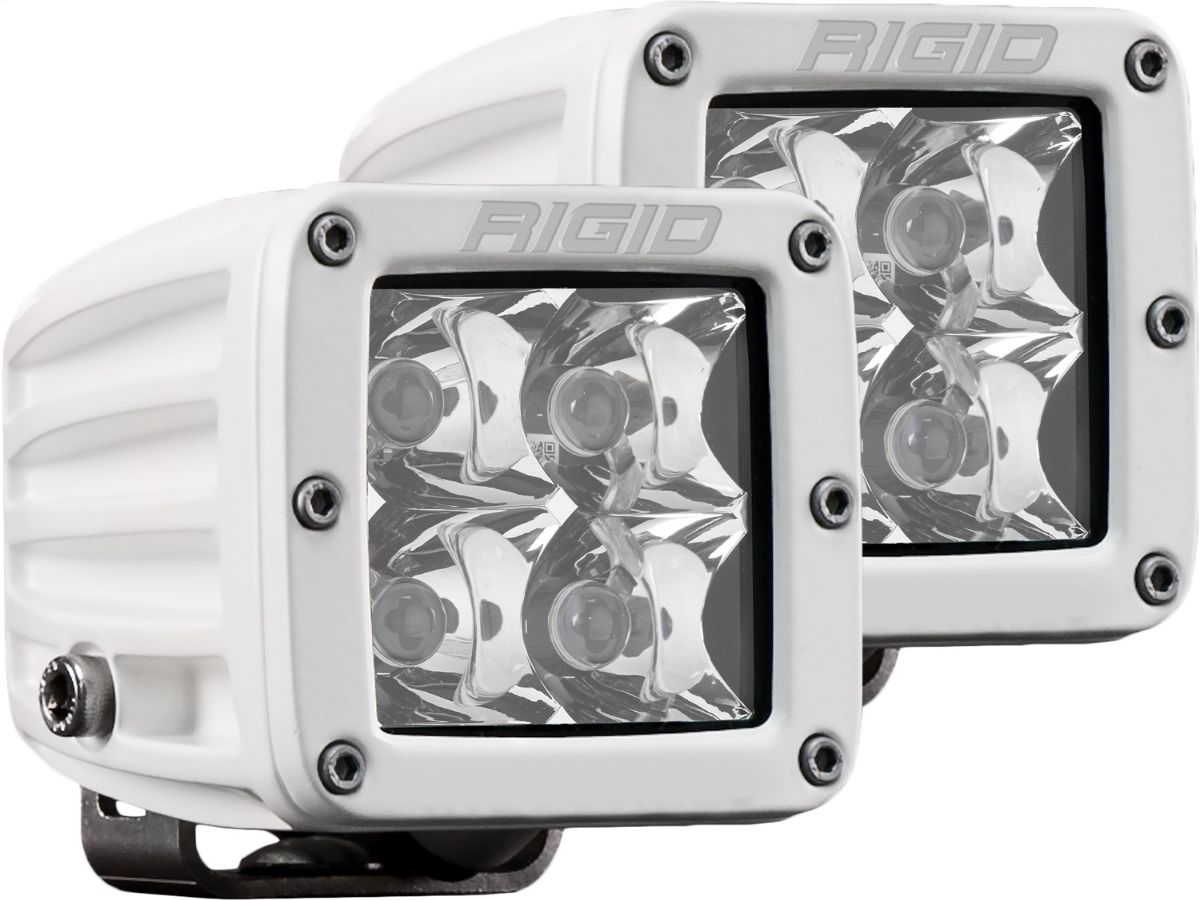

The RIGID D-Series PRO LED Light - Spot Beam - Surface Mount - White Housing - Pair is the epitome of compact yet powerful lighting solutions. Renowned for its versatility, the D-Series has long been the go-to choice for a wide range of applications. Now, with the D-Series PRO, RIGID has elevated this popular series to professional-grade performance. Thanks to cutting-edge advancements in LED technology, the D-Series PRO delivers up to 102% more raw lumens than previous models. With its sleek 3" x 3" size, this light provides an extraordinary level of brightness in a compact package. The addition of a white housing offers a refined aesthetic, making these lights both functional and stylish for any vehicle or equipment.
Key Features
- Increased Light Output: Up to 102% more raw lumens for superior brightness.
- Durable Construction: High-grade aluminum alloy with a UV-resistant powder coat finish.
- Spot Beam Optic: Designed for focused, long-distance visibility.
- White Housing: Offers a sleek and refined appearance, perfect for any application.
Detailed Features
- Increased Light Output: The D-Series PRO Spot Beam delivers significantly more raw lumens than previous models, providing unparalleled brightness for any lighting application. Whether you're off-roading, working on a job site, or simply need extra visibility on the road, the D-Series PRO ensures you have the light output you need.
- Durable Construction: Built to endure the harshest conditions, the D-Series PRO features a high-grade aluminum alloy housing with an impact-resistant polycarbonate lens. The durable UV-resistant powder coat finish not only protects the light from environmental damage but also maintains its appearance over time. IP68 compliance ensures that the lights are protected against dust and water ingress, making them ideal for off-road and demanding environments.
- Spot Beam Optic: The spot beam pattern is engineered for focused, long-range lighting, perfect for situations where you need to see far ahead. With a beam distance of up to 268.7 meters at 1 lux and a peak beam intensity of 721.97 lux at 10 meters, the D-Series PRO Spot Beam provides exceptional clarity and precision.
- White Housing: The D-Series PRO is available with a white housing, adding a sleek and stylish look to your vehicle or equipment. The white finish not only enhances the appearance but also complements a wide range of color schemes, making it a versatile choice for any application.
Understanding Lighting Terms
- Lux: Lux is a unit of measurement for illuminance, indicating how much light is spread over a given area. One lux equals one lumen per square meter. Higher lux values mean a brighter light, providing more effective illumination at greater distances.
- Spot Beam: The spot beam pattern is designed for long-range visibility, focusing the light output into a narrow, concentrated beam. This is ideal for high-speed driving, off-road adventures, or any application where seeing far ahead is critical.
Construction and Durability
The RIGID D-Series PRO LED Light is designed for durability and longevity. The high-grade aluminum alloy construction combined with a durable UV-resistant powder coat finish ensures that the lights can withstand the toughest conditions. The impact-resistant polycarbonate lens adds an extra layer of protection, making the lights resilient against harsh environments. With IP68 compliance, the lights are protected from dust and water ingress, and they can operate effectively in temperatures ranging from -40°F to +145°F. Additionally, the lights are backed by a limited lifetime warranty, guaranteeing reliable performance over the long term.
Mounting and Installation
The D-Series PRO Spot Beam includes all necessary mounting hardware, a stainless steel U-shape bracket (excluding flush mount), and vibration isolators for heavy-duty surface mounting. The package also comes with a harness with a switch and a Deutsch connector, making installation straightforward and secure. The surface mount design allows for easy integration into various vehicles and equipment, providing a reliable and stable lighting solution.
What’s Included
- Mounting Hardware
- Stainless Steel, U-Shape Bracket (Excludes Flush Mount)
- Vibration Isolators (Heavy Duty Surface Only)
- Harness w/Switch
- Deutsch Connector
Performance Specifications

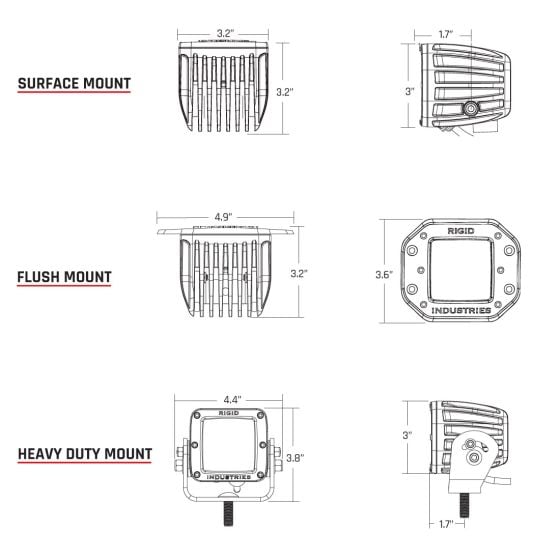

- Size: 3" x 3"
- Part No.: 602213
- Weight: 2.30 lbs
- Optics: Spot beam
- Watts: 30
- Amp Draw: 2.14
- Raw Lumens: 3168 (measures the total light output without any losses)
- Lux @ 10m: 721.97
- Beam Distance @ 1 Lux: 268.7 meters
- Beam Distance @ 0.25 Lux: 537.4 meters
- Horizontal Beam Angle: 16.5 degrees
The RIGID D-Series PRO LED Light - Spot Beam - Surface Mount - White Housing - Pair is a powerful and versatile lighting solution that combines exceptional performance with a sleek design. With advanced LED technology, durable construction, and a focused spot beam pattern, this light is perfect for off-road enthusiasts, professionals, and anyone in need of reliable and efficient lighting. The white housing adds a touch of style, making this light both functional and aesthetically pleasing.
