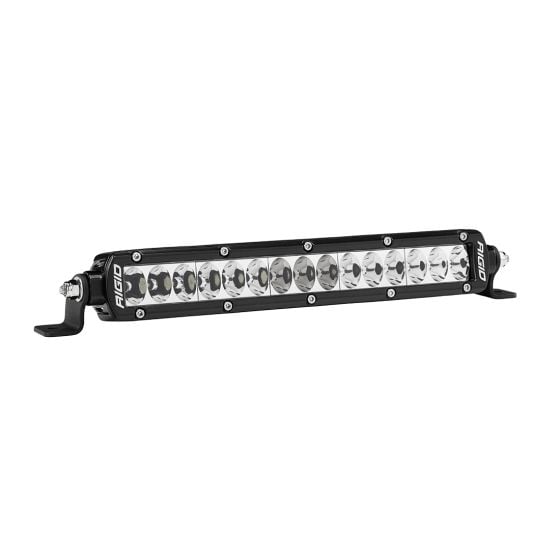

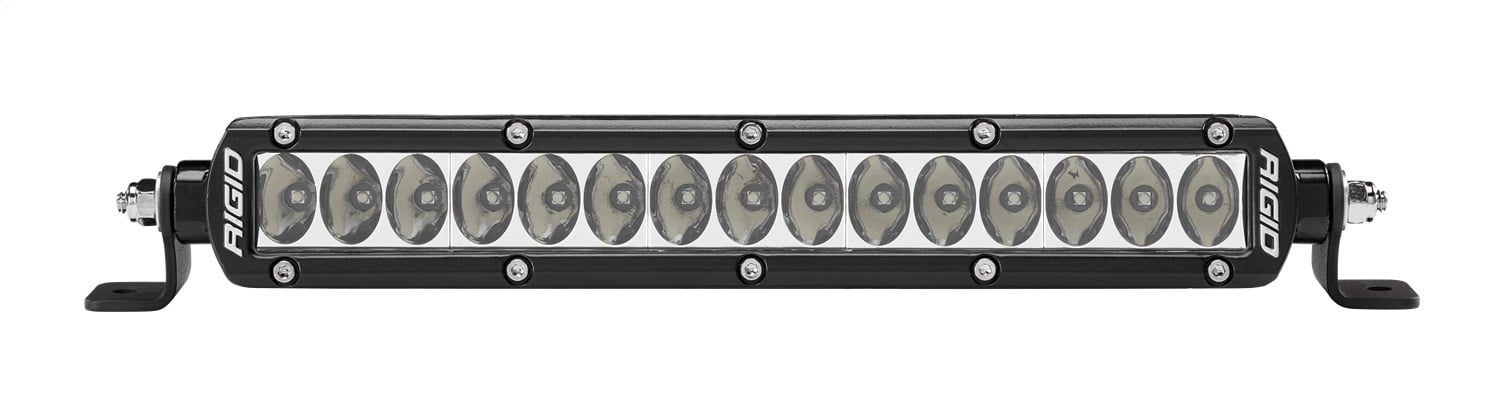

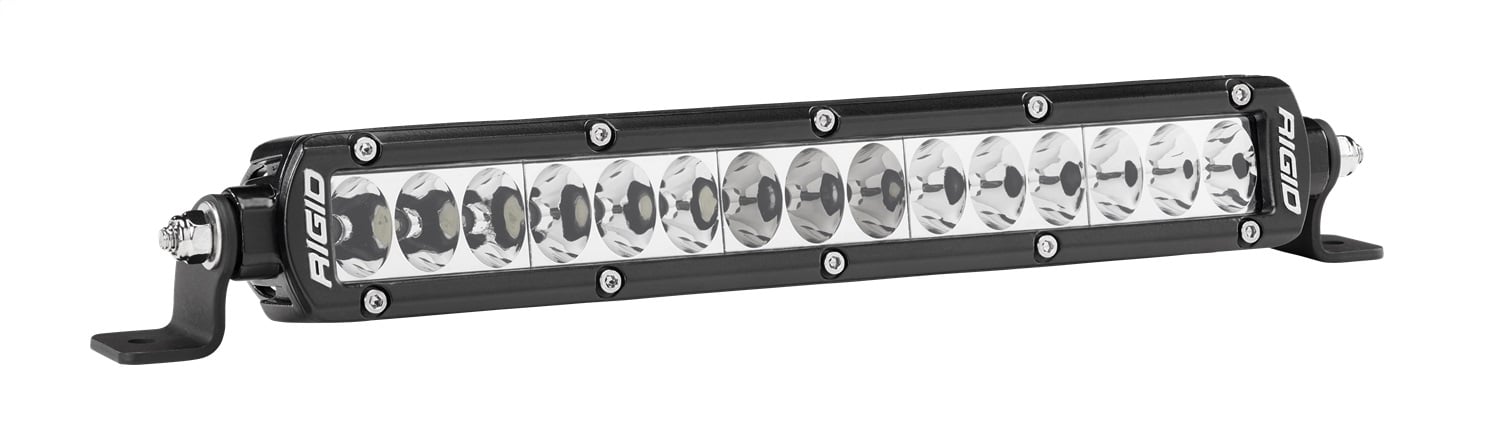

The RIGID SR-Series PRO 10" LED Light is a sleek, low-profile lighting solution, perfect for applications where space is limited but powerful illumination is required. With a height of less than 2 inches, this light bar delivers an impressive output thanks to improved LED technology, offering up to 111% more raw lumens. The SR-Series PRO is designed to project light at extreme distances while consuming minimal power, making it ideal for off-road vehicles, industrial settings, agricultural machinery, and marine applications. Available in a variety of lengths and configurations, the SR-Series PRO is versatile enough to be used in virtually any scenario.
Technology and Construction:
The SR-Series PRO 10" LED Light features an extruded aluminum housing, ensuring durability and resilience in harsh environments. The light bar is available in both black and white powder-coated finishes, providing a rugged yet refined appearance. The integrated thermal management system helps maintain optimal operating temperatures, prolonging the life of the LEDs and ensuring consistent performance. Additionally, the light is equipped with an impact-resistant polycarbonate lens, over/under voltage protection, reverse polarity protection, and RFI/EMI shielding, all of which contribute to its reliable and efficient operation. The SR-Series PRO is also RoHS compliant and meets SAE J575 standards for shock and vibration resistance.
Beam Pattern:
The driving beam pattern of the SR-Series PRO 10" LED Light is engineered to provide a balanced combination of distance and peripheral illumination. This makes it particularly well-suited for higher-speed driving situations where a clear view of the road ahead is crucial.
- Balanced Illumination: The driving beam pattern strikes an ideal balance between forward projection and side illumination, ensuring that both the road ahead and the surrounding areas are well-lit.
- Medium to Long-Range Visibility: Designed for medium to long-range applications, this beam pattern extends the driver’s field of vision far down the road, providing ample time to react to potential hazards.
- Wide Horizontal Spread: The driving beam casts light across a broad horizontal plane, making it easier to spot obstacles and changes in terrain at the edges of the road.
- Reduced Glare and Eye Strain: The even distribution of light minimizes glare and hot spots, reducing eye strain during prolonged driving sessions.
Ideal Use Cases:
- Highway and Freeway Driving: Perfect for highway driving, where consistent, long-range illumination is necessary to maintain safe speeds.
- Off-Road Adventures: Provides the necessary light to spot obstacles and navigate through rugged terrain.
- Rural and Remote Areas: Ensures clear visibility in areas with minimal street lighting.
- Nighttime Commutes: Offers enhanced visibility, reducing the risk of accidents caused by poor lighting conditions.
Key Features:
- High-Grade Aluminum Alloy Construction: Durable housing with a UV-resistant powder coat finish, available in black or white.
- Improved LED Technology: Up to 111% more raw lumens for increased light output and better visibility.
- Integrated Thermal Management System: Maintains optimal operating temperatures for consistent performance and extended LED lifespan.
- Driving Beam Pattern: Offers balanced illumination with medium to long-range visibility, ideal for a variety of applications.
Specifications:
- Size: 10"
- Weight: 1.72 lbs
- Optics: Driving Beam
- Watts: 84
- Amp Draw: 4.94
- Raw Lumens: 7,524
- Lux @ 10m: 593.58
- Beam Distance @ 1 Lux: 243.6 meters
- Beam Distance @ 0.25 Lux: 487.3 meters
- Horizontal Beam Angle: 49.4°
What’s Included:
- 2-1”, 2-3” Black Powder Coated L-shape Brackets
- Deutsch Connector (6")
- Open Leads, No Connector (20”-30”)
- Harness w/Switch
Key Terms to Know:
- Raw Lumens: The total amount of light emitted by the LEDs before any losses due to optics or lens.
- Driving Beam Pattern: A beam pattern that balances distance and width, providing medium to long-range illumination for higher-speed driving.
- IP68 Rating: Indicates the light is dust-tight and protected against continuous water immersion.
- Integrated Thermal Management System: A system that manages the heat generated by the LEDs to keep them running cooler and brighter for longer periods.
The RIGID SR-Series PRO 10" LED Light offers a powerful, efficient, and versatile lighting solution for a wide range of applications. Whether you're navigating off-road trails, driving on highways, or working in industrial settings, this light bar ensures that you have the visibility you need to stay safe and perform at your best.
