The Shocker 14K Air Receiver Hitch adds instant air ride towing to your pickup and trailer, transforming a rough, jarring tow into a genuinely smooth one. It's a miniature air suspension unit that mounts between your truck and trailer, channeling road shock, tugs, jerks, bumps, bangs, and sway through a built-in air spring bag and dual urethane bump cushions. Instead of the harsh, rigid connection of a standard ball mount, the 14K Air Hitch cushions every mile, creating a smoother, safer, more comfortable ride for both the tow vehicle and the trailer. It slides into a standard receiver and comes with an adjustable combo ball offering both a 2" and a 2-5/16" ball with 1/2" to 4-1/2" of drop.
It's ideal for anyone towing bumper-pull trailers, campers, boats, car haulers, RVs, and equipment who is tired of constant bumps, jerks, and vibrations. Beyond comfort, the air ride system naturally reduces trailer sway, protects your trailer and cargo from the damaging forces of a hard connection, and can even improve fuel economy by 1 or more miles per gallon. Best of all, it's tunable: add air for heavier loads or reduce it for lighter ones to dial in the perfect ride and load control. The 14K Air Hitch is offered in two receiver sizes and two finishes so you can match it to your truck and your style, and every version is made in the USA by Shocker Hitch in Jamestown, ND.
Key Features
- Built-in air ride suspension for smoother towing – A built-in air spring bag and dual urethane bump cushions absorb road shock, tugs, jerks, bumps, and sway, creating a much smoother ride for both the tow vehicle and the trailer, every mile.
- 14,000 lb capacity with adjustable dual combo ball – A 14,000 lbs. GTW / 1,400 lbs. tongue weight frame rating, with an adjustable 2" and 2-5/16" combo ball and 1/2" to 4-1/2" of drop across 8 adjustment holes.
- Tunable air pressure for any load – Add air for heavier trailers or reduce it for lighter loads to optimize ride comfort, load control, and sway reduction for your exact towing weight.
- Available in two receiver sizes and two finishes – Choose a 2" or 2-1/2" receiver, and a standard safety-red frame with chrome balls or the blacked-out Max Black finish with black balls, to fit your truck and your style.
Features & Benefits

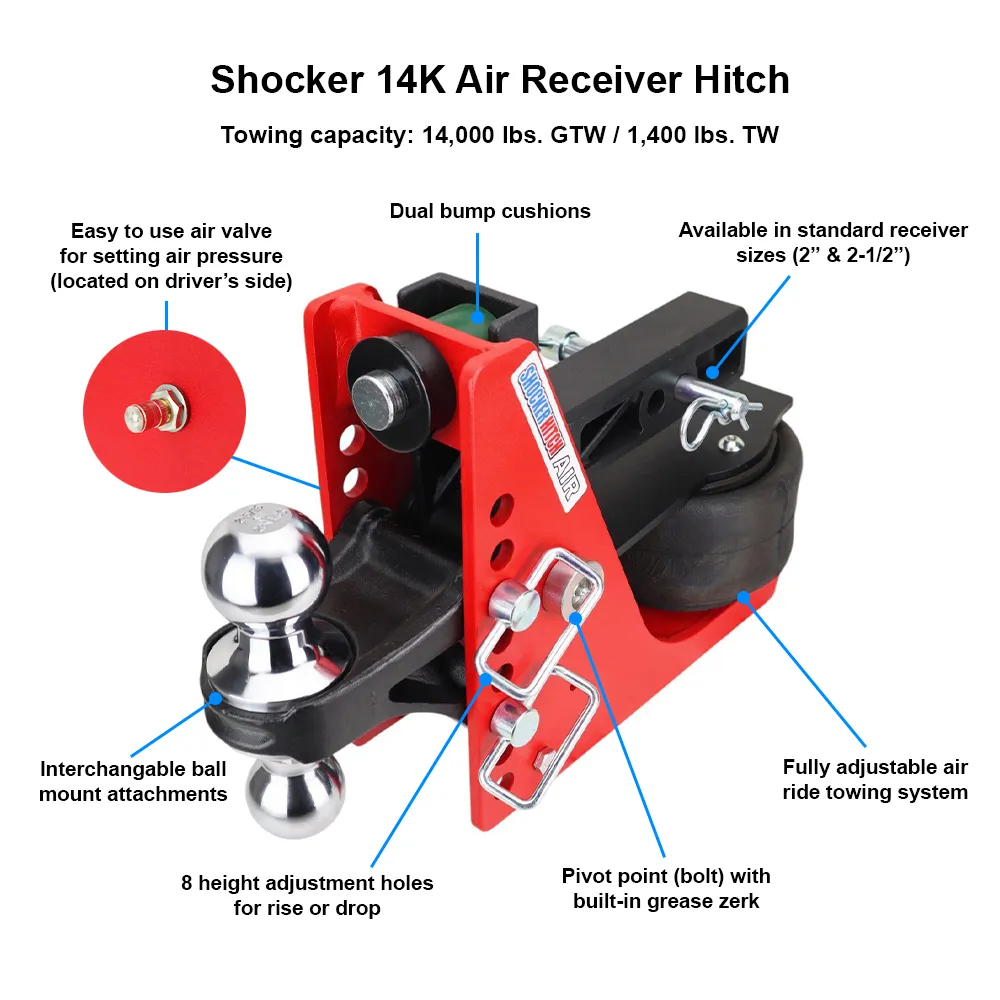

The heart of every 14K Air Hitch is Shocker's industry-leading rocker pivot design. Unlike other air hitches that rely on slides, parallel linkages, rollers, shock absorbers, or multiple airbags, the Shocker uses a shock-damping rocker arm pivot that produces a distinctive down-and-back motion. This motion filters road shock into the integrated air ride system and dual bump cushions, working through the air spring bag, urethane cushions, and a greaseable 1" diameter 1045 carbon steel pivot bolt. That 1" pivot bolt is what allows the pivoting rocker motion to happen smoothly and reliably. It's a simple, effective, and durable design built for years of performance.
The benefits go well beyond comfort. By directing the normal towing resistance between the tow vehicle and trailer through the air ride system, the Shocker produces a much smoother ride and naturally reduces trailer sway, filtering and absorbing the changing tongue weight that occurs when towing on uneven or rough roads. It absorbs the damaging forces of a typical hard connection, which greatly reduces the chances of breaking welds and doing other long-term damage to your equipment and valuable cargo, saving you money on repairs, while the dual bump cushions add performance on dirt, gravel, rough roads, and concrete highways. It's also easier on you, your passengers, animals, tow vehicle, trailer, and cargo, reducing stress and improving your control of both the truck and the trailer for added safety.
Every 14K is heavy-duty and adjustable. Construction includes 5/16" thick carbon steel side plates with 8 adjustment holes, a thick top plate, the air spring bag, and dual bump cushions, and the air bag sits under the receiver tube for a short, stable ~10-1/2" distance between the receiver pin and ball center. You can easily optimize the hitch for your tow weight by adding or reducing air (never exceeding 100 PSI). A useful note across the whole 14K line: a leveling spacer block is generally not needed, because the 14K air spring bag is 1" taller than the HD air spring bag (the 20K HD models do use a spacer). Every 14K also anchors a system of 20+ interchangeable ball mount options, so you can swap the combo ball for drop, raised, drawbar, clevis pin, sway bar tab, pintle hook, pintle-and-ball, and other attachments. None of the 14K hitches work with a weight-distribution system.
Compare the 14K Configurations
Choose your receiver size based on your truck, and your finish based on your style. Every version shares the same 14,000 lb frame rating, air ride system, rocker pivot design, and per-ball ratings.
- Receiver size: The 2" receiver fits most 1/2-ton pickups, SUVs, and vans; the 2-1/2" receiver fits 3/4-ton and 1-ton pickups, flatbed trucks, and service body trucks.

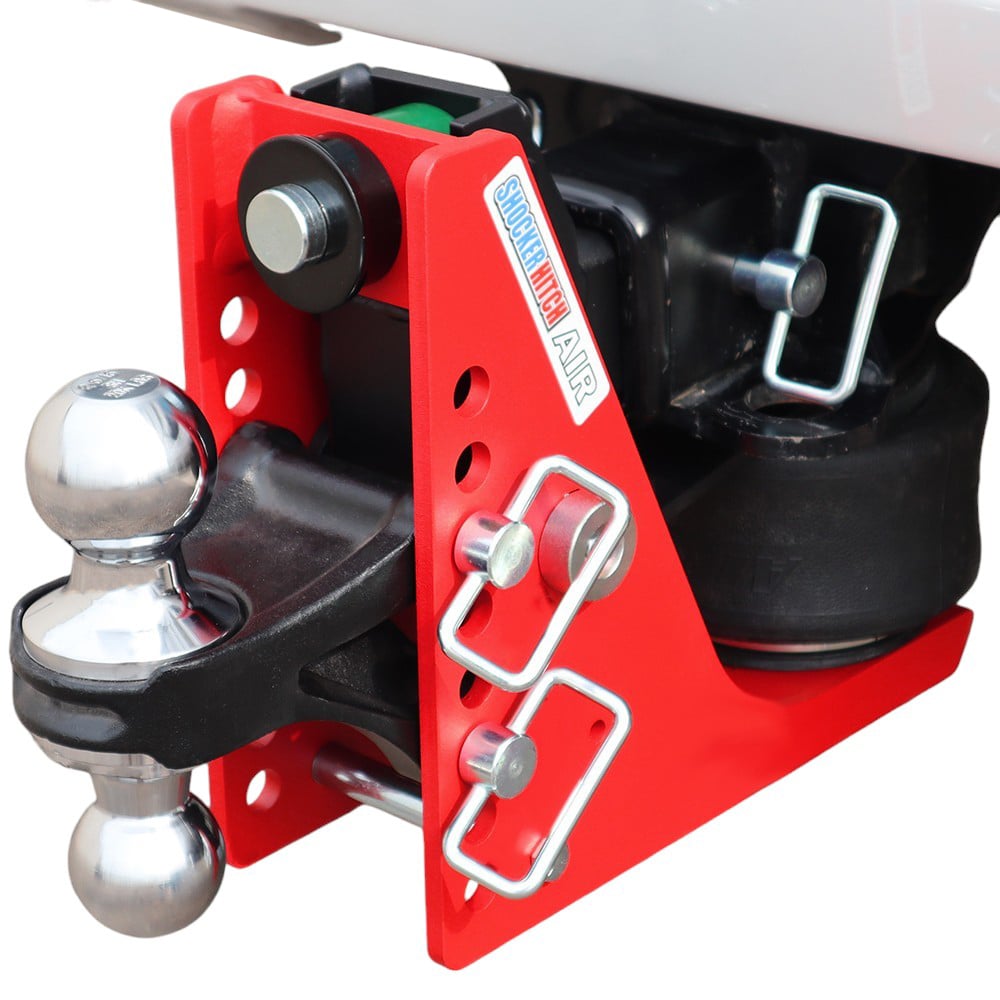

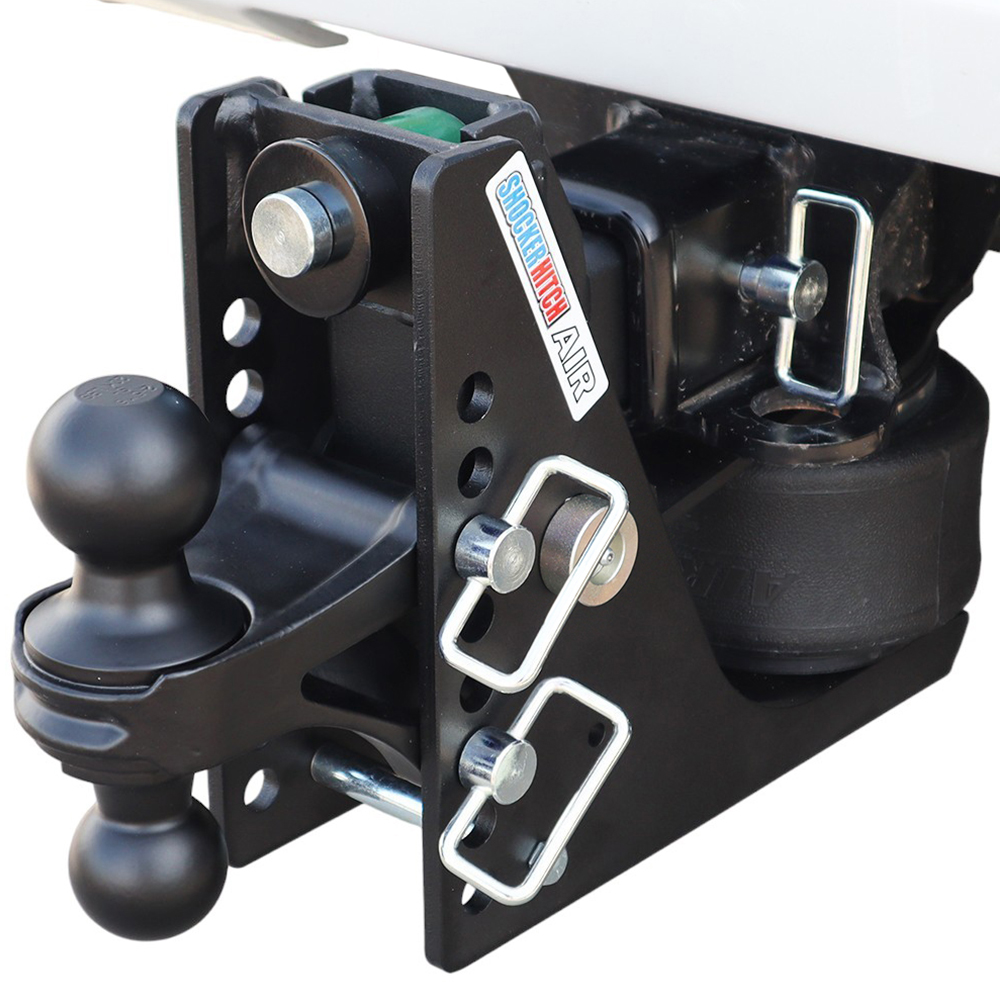

- Finish: The standard version has an impact-resistant safety-red textured powder coat on the base frame, textured matte black on the shank and paddle, and chrome combo balls. The Max Black version applies Shocker's Max Black textured, impact-resistant matte-black powder coat across the frame, shank, floating paddle, and components, with a matching black combo ball, for a fully blacked-out look.
- Ratings (all versions): 14,000 lbs. GTW / 1,400 lbs. tongue weight (frame); 10,000 lbs. GTW on the 2" ball; 20,000 lbs. GTW on the 2-5/16" ball.
Installation & Use
- Fitment: Slides into a standard 2" or 2-1/2" receiver hitch tube (per the version you choose), for bumper-pull trailers with a 2" or 2-5/16" coupler.
- Before installing: Compress the air spring first. Use the provided cotter pin clip to push in on the valve core to release air pressure and simultaneously push down on the paddle or squeeze the plates together to exhaust the remaining air.
- Mounting the hitch: Slide the shank fully into the receiver tube, align the pin holes, insert the 5/8" hitch pin, and lock it with the cotter pin clip.
- Installing the ball mount: Choose an attachment that lets your trailer sit level, install it into the Shocker frame, and secure it with the provided hitch pins and cotter pin clips.
- Setting air pressure: Hook up and load your trailer, then inflate the air spring; as pressure increases the unit rotates and lifts the hitch point. Add air until the top of the frame touches the tailgate-side bump cushion (or, for heavy loads, compresses it by about 1/8"). The "sweet spot" is reached once the main frame lightly compresses the truck-side bump cushion.
- Spacer block: Generally not needed on the 14K (its air spring bag is 1" taller than the HD version). If the paddle sits at more than a 10-degree angle when aired up, a spacer can be added to level it.
- Important cautions: NEVER exceed 100 PSI. Do NOT tighten the top bolt, it is a limiter stop only. Grease the hitch ball to reduce wear and improve shocker action. Connect your safety chains and electrical cord before towing.
Downloadable instructions and a setup video are available. Always confirm your trailer is level and all pins are seated before towing.
What's Included
- (1) Shocker 14K air ride receiver hitch (in your chosen receiver size and finish), with built-in air ride system and dual bump cushions
- (1) Adjustable 2" & 2-5/16" combo ball mount (chrome on standard, black on Max Black), 1/2" to 4-1/2" drop
- (3) D-handle mount attachment pins with clips (two for the mount attachment, one for your receiver)
*A huge selection of alternate ball mount attachments (drop, raised, drawbar, clevis pin, sway bar tab, pintle hook, pintle-and-ball, and more, 20+ options) is available separately.*
Care & Maintenance
A little routine care keeps your Shocker performing smoothly for years:

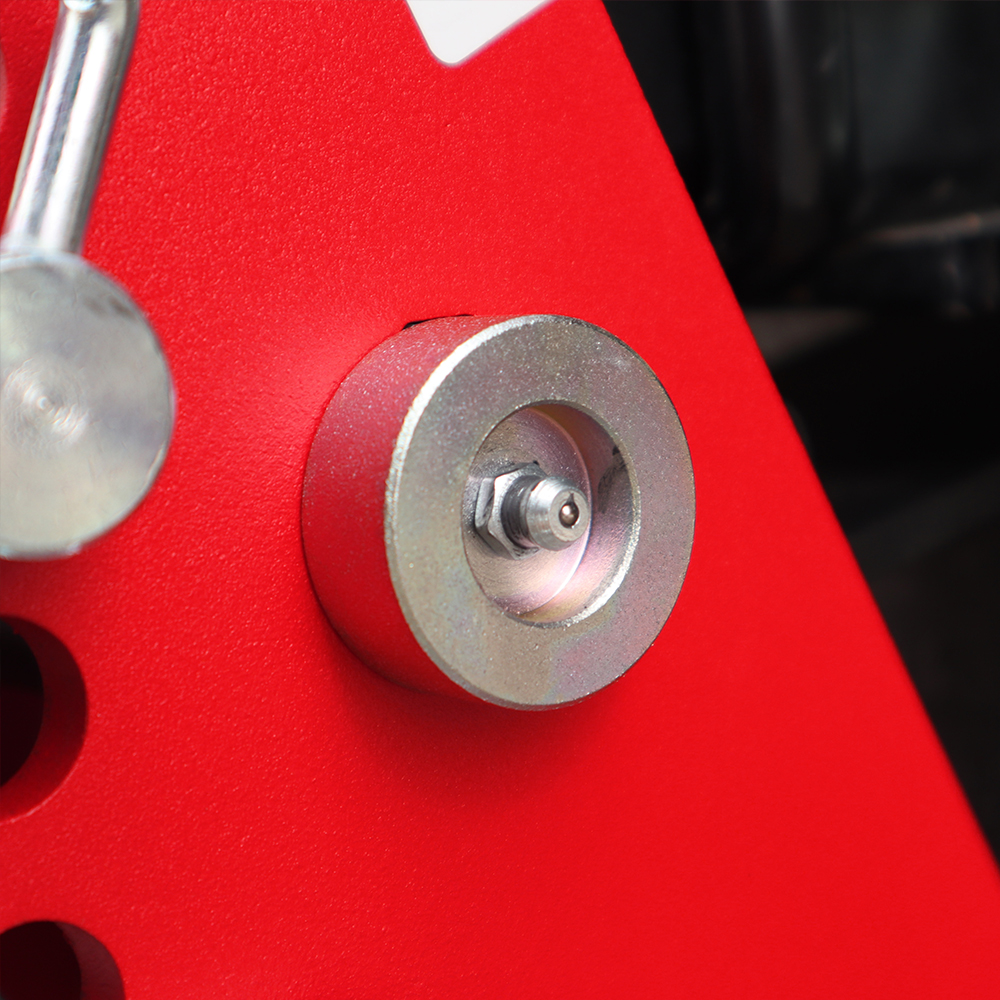

- Grease the ball and pivot bolt: Grease the hitch ball to reduce wear and improve shocker action, and keep the greaseable 1" 1045 carbon steel pivot bolt lubricated so the rocker motion stays smooth.
- Check air pressure: Periodically verify the air pressure is set correctly for your load so the paddle sits level; add or release air as your load changes. Never exceed 100 PSI.
- Do not tighten the top bolt: Remember the top bolt is a limiter stop only; leave it as set.
- Keep pins clean and secure: Keep the D-handle pins and clips clean and confirm they are fully seated before every tow, along with your safety chains and electrical cord.
- Keep it clean: Rinse off road salt, mud, and grime periodically, especially after winter or coastal driving, to protect the powder coat finish.
- Inspect before towing: Check the air spring bag, bump cushions, side plates, welds, and finish for wear or damage; confirm the ball is greased and secure.
- Storage: Store the hitch and ball mount somewhere dry when not in use; keep the shank clean so it slides in and out easily.
Warranty
Shocker Hitch products are backed by the manufacturer's warranty against defects in materials and workmanship under normal use.
- Typically covered: Manufacturing defects in materials and workmanship under normal, intended use.
- Typically not covered: Damage from misuse, exceeding rated capacities, exceeding 100 PSI, improper installation, accident, modification, and normal wear.
*Warranty terms and duration can vary; confirm the exact coverage with Shocker Hitch or your point of purchase before publishing. Made in the USA by Shocker Hitch in Jamestown, ND.*
Terms to Know
- Air ride hitch: A receiver hitch with a built-in air spring (airbag) that acts as a small suspension between truck and trailer, absorbing road shock for a smoother tow.
- 2" vs. 2-1/2" receiver: The receiver tube size; 2" fits most 1/2-ton pickups, SUVs, and vans, while 2-1/2" fits 3/4-ton and 1-ton and commercial trucks.
- Standard vs. Max Black finish: Standard uses a safety-red frame with chrome combo balls; Max Black uses an all-matte-black powder coat with black combo balls.
- Combo/dual ball mount: A mount carrying two ball sizes (here 2" and 2-5/16") so one hitch fits most common bumper-pull couplers.
- Drop: How far the ball sits below the receiver opening; the combo ball offers 1/2" to 4-1/2" of drop across its 8 adjustment holes.
- Rocker arm pivot design: Shocker's shock-damping design that produces a down-and-back motion to filter road shock into the air spring, without slides, linkages, rollers, or shocks.

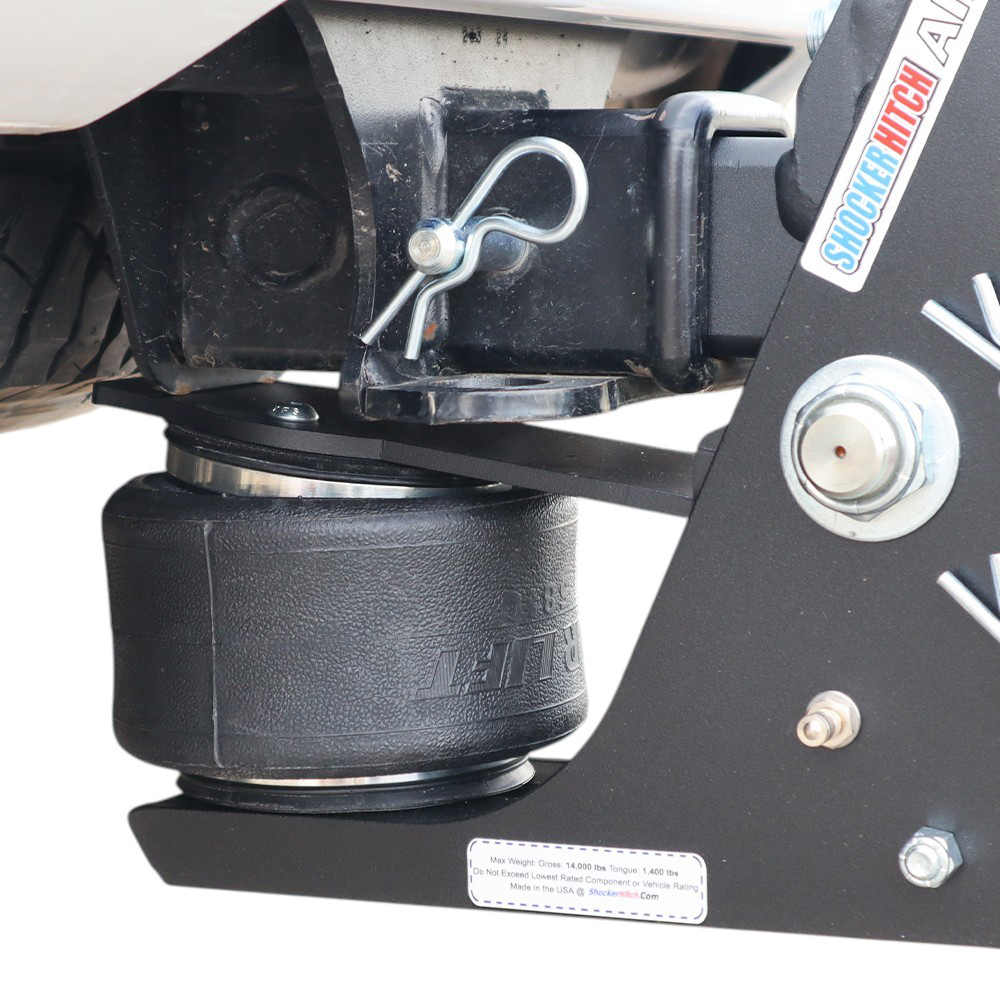

- Air spring bag: The inflatable rubber bag that provides the cushioning; its pressure is adjustable for your load (never over 100 PSI).

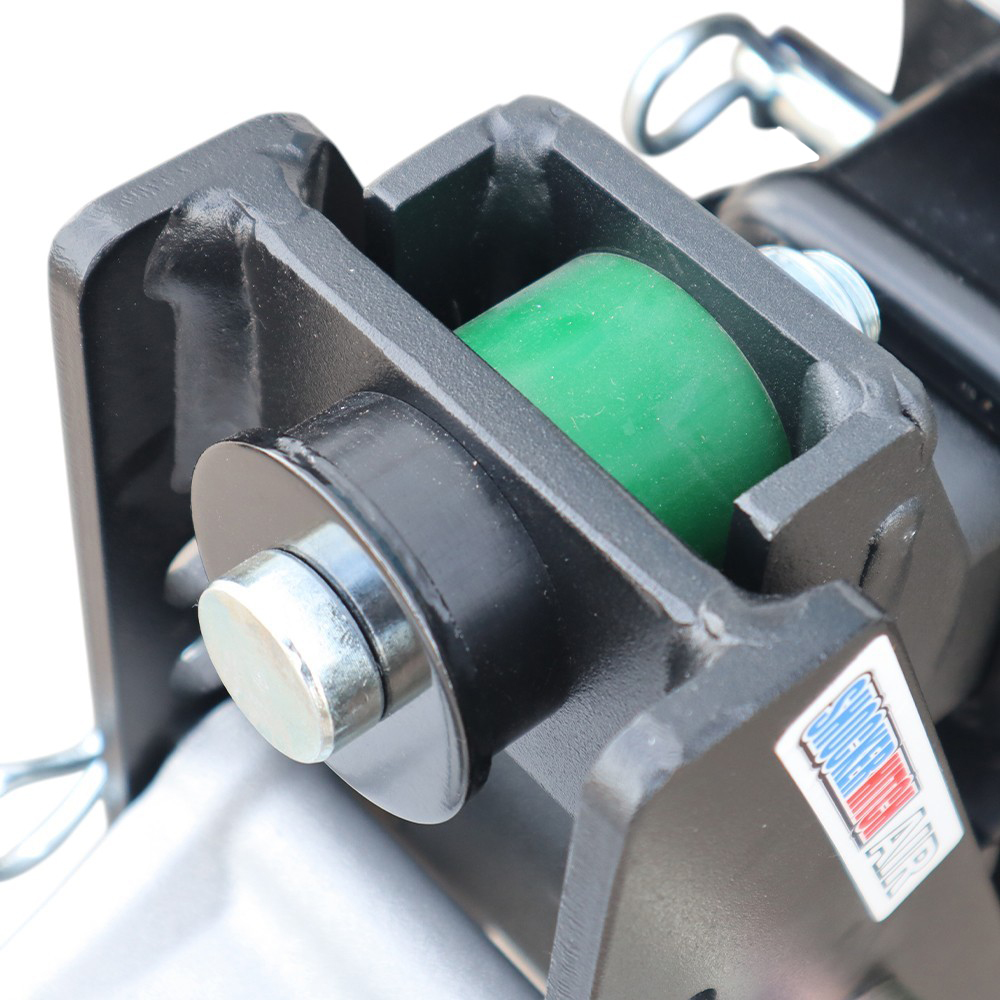

- Bump cushions: Dual urethane cushions that add extra shock absorption on rough roads.
- Paddle: The floating metal plate above the air spring bag that should sit level when the hitch is properly aired up.
- Pivot bolt: The greaseable 1" diameter 1045 carbon steel bolt that lets the rocker motion happen smoothly.
- Limiter stop (top bolt): The top bolt that sets a motion limit only and should never be tightened down.
- GTW/TW: Gross Trailer Weight and Tongue Weight; the 14K frame is rated 14,000 / 1,400 lbs, the 2" ball 10,000 lbs, and the 2-5/16" ball 20,000 lbs.
- Weight-distribution hitch: A system that spreads tongue weight across the vehicle; the Shocker air hitch is NOT compatible with it.
